Telescopes

APO160FL F/7

APO160FL F/7 – Slightly larger than the TEC APO140FL F/7, the APO160FL F/7 is slightly longer and heavier, and may require a larger mount. APO160FL has excellent color correction thanks to glass combined with Fluorite as a middle element.

$12,90000


Description
Technical Details
Availability
Additional Options

Description

An extension of the highly popular APO140FL, the APO160FL F/7 allows the observer to delve deeper into the beauty of space.

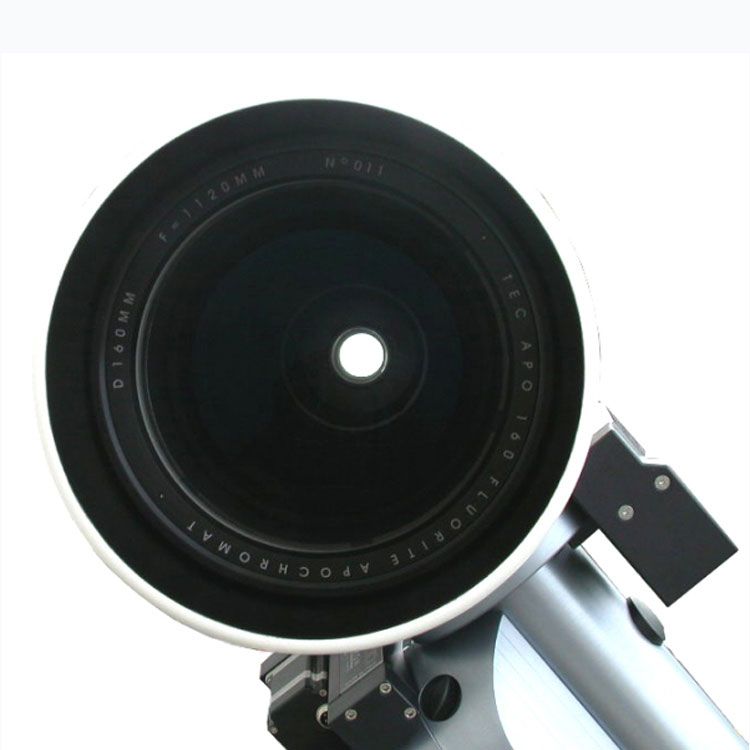

The TEC APO160FL F/7 features an oil-spaced apochromatic-triplet objective with a Fluorite (CaF2) middle element, resulting in color correction that is optimized for visual use and imaging. This oil-spaced triplet design, in combination with multi-layer coatings on all surfaces of the objective, ensures maximal light transmission.

The objective is housed in an aluminum cell, providing excellent thermoregulation properties while remaining lightweight and strong.

The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior. And forget about collimation – after the scope leaves TEC, no adjustment is required.

The crisp all-white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color from this compact and timeless design.

Each APO160FL F/7 comes equipped with:

  • A Starlight Instruments FTF#3545 Feather Touch Focuser, designed in collaboration with TEC.
  • Starlight Instruments’ largest rotating focuser with coarse and fine focusing (9:1 Planetary Reduction Assembly).
  • A 2" locking metal collet that is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
  • A focuser wheel for easy mount installation and direction.

In classic refractor fashion, the TEC APO160FL F/7 is a no-compromise, no-frills design that lets the wonders of nature speak for themselves.

Price: $12,900 (including an initial $3,000 refundable deposit).

Note: ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE. The price initially quoted for a telescope purchase may not be reflected in the final invoice. Wait times may also be longer than initially quoted.

How to place an order with TEC

To place an order, please complete the checkout process directly on our site. After your order is submitted, you will receive a confirmation email with next steps for TEC to take your deposit and begin processing. Your order is added to the production list once the deposit is received, but pricing is not guaranteed. The balance is due upon completion. Accessories and mounts can be requested in the order comments. Prices, availability, and lead times may change without notice. Paypal fees apply. Contact us with any questions or cancellations.

Specifications

Clear Aperture 160 mm
Focal Length 1120 mm
Focal Ratio 7.0
Resolution (Theoretical) 0.75 arc sec
Dew Shield Diameter 7.91" / 201 mm
Tube Diameter 6.38" / 162 mm
Tube Length (Retracted) 39" / 991 mm
Tube Length (Dew Shield Extended) 47" / 1194 mm
Length Incl. Focuser Fully Extended +3.5" / 114 mm
Length in Working Position 50.7" / 1288 mm
Back Focus 7.48" / 190 mm ±1
Center of Gravity (with 2.5 lb / 1 kg load) 15.6" / 396 mm
Center of Gravity (Telescope Retracted) 16.4" / 417 mm
Telescope Weight 27 lb / 12.3 kg
Weight Incl. Rings, Plate, Handle 31 lb / 14 kg


Focuser Information



Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Manuals & Diagrams

2009 TEC APO160FL F7 User Manual

Click here to download the 2009 TEC APO160FL F7 User Manual

Product Sketches Available for Download:

Click here to download APO160FL F7 COG

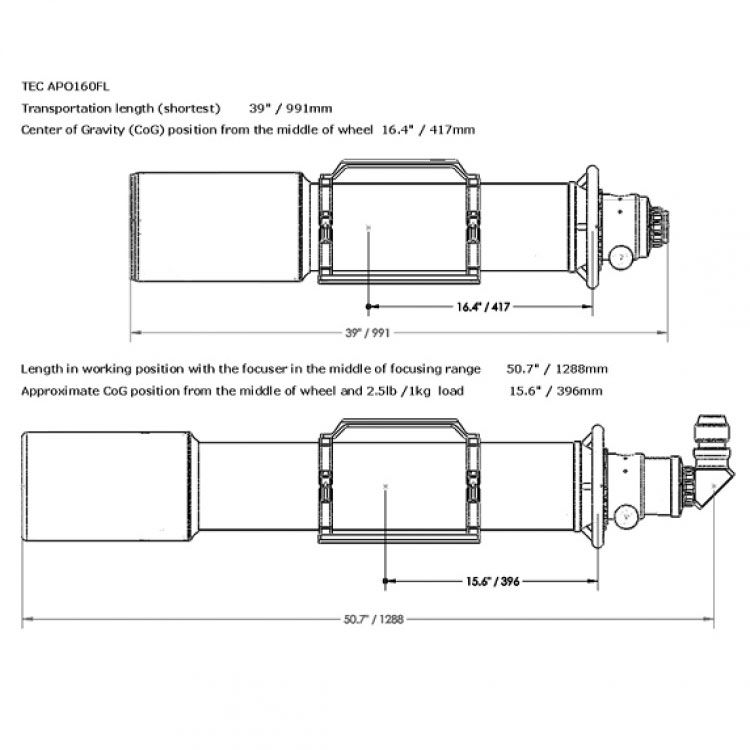

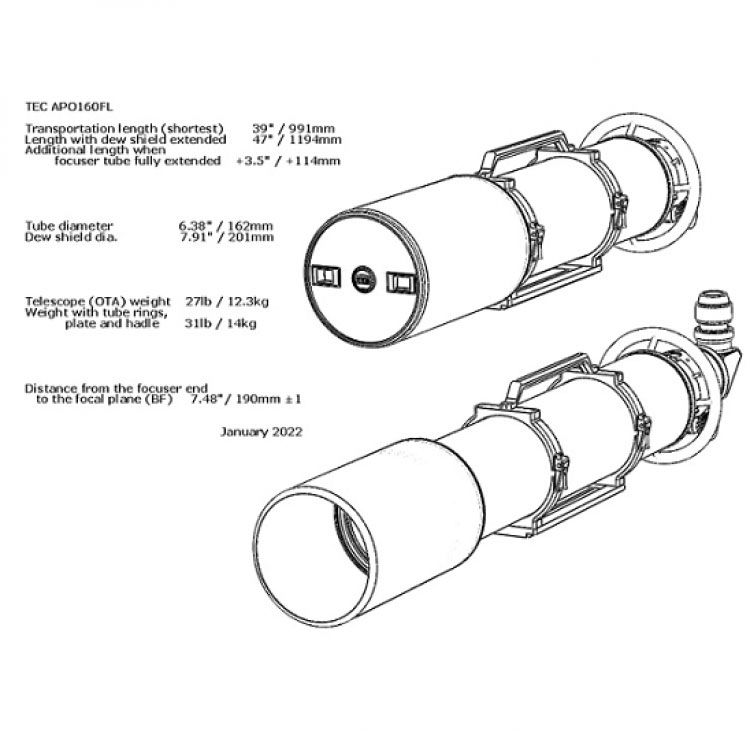

Click here to download APO160FL F7 Dimensions

Focuser Instructions Available for Download

Click here to download Focuser Instructions

Availability

May 1st, 2025: We currently estimate that new APO160FL F/7 orders will be ready to ship in Spring or Summer 2026.

Mount Recommendations

  • 10Micron GM1000 HPS (Visual Only)
  • 10Micron AZ1000 HPS (Visual Only)
  • 10Micron GM2000 HPS
  • 10Micron AZ2000 HPS
  • Astro-Physics Mach2GTO (Visual Only)
  • Astro-Physics 1100GTO Mount
  • Track the Stars 160 Panther Mount (Visual Only)

Recommended Accessories

  • Precision adjustable Tube Rings
  • 12" Dovetail Plate and Carry Handle
  • 14" Losmandy Universal Dovetail Plate and Handle
  • Focal Reducer Corrector (F/7 to F/6.2, 115mm back focus)
  • 10×60 Baader Vario Finderscope with TEC Finder Bracket and Base
  • 7×50 Vixen Finderscope with TEC Finder Bracket and Base
  • Gutekunst Compact Atmospheric Dispersion Corrector (ADC) with adapter set
View All Accessories
