Telescopes

APO140FL F/9.6

The Pearl has been revealed. Our newly released update to the classic APO140FL will feature key design changes to optimize color correction and will be known as a “super” planetary telescope. This model will excel in crisp planetary and lunar images for both visual observation and astrophotography.

$7,50000


Item#:APO140FL F/9.6

Description
Technical Details
Availability
Additional Options

Description

Our dedicated Planetary Refractor, the APO140FL F/9.6 will open the night sky to those willing to observe.

  • The APO140FL F/9.6 features an air-spaced apochromatic-doublet objective with a Fluorite (CaF2) rear element that results in a lighter objective.
  • The objective weighs about 2.5 lbs., compared to 5 lbs. for the APO140FL F/7 version, allowing it to come to temperature more quickly.
  • Starting 2025, the objective includes anti-reflective and hydrophobic coatings for easier cleaning and maintenance.
  • Housed in an aluminum cell, it provides excellent thermoregulation while remaining lightweight and strong.
  • The optical assembly is inside a lightweight aluminum tube with sharp-edged baffles.
  • No collimation is needed after the scope leaves TEC.
  • Comes equipped with a Starlight Instruments FTF#2545 Feather Touch Focuser with coarse and fine 9:1 planetary reduction.
  • The 2" locking metal collet is temperature-insensitive and holds loads with precision and concentricity.

In classic refractor fashion, the TEC APO140FL F/9.6 is a no-compromise, no-frills design that lets the wonders of nature speak for themselves.

Price: $7,500 (including an initial $2,500 refundable deposit).

Note: ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE. The price initially quoted for a telescope purchase may not be reflected in the final invoice. Wait times may also be longer than initially quoted.

How to place an order with TEC

To place an order, please complete the checkout process directly on our site. After your order is submitted, you will receive a confirmation email with next steps for TEC to take your deposit and begin processing. Your order is added to the production list once the deposit is received, but pricing is not guaranteed. The balance is due upon completion. Accessories and mounts can be requested in the order comments. Prices, availability, and lead times may change without notice. Paypal fees apply. Contact us with any questions or cancellations.

Specifications

Clear Aperture 140mm
Focal Length 1345mm
Focal Ratio 9.6
Resolution 0.86 arc sec
Back Focus Distance 250mm
Dew Shield Diameter 176mm / 6.9"
Tube Diameter 150mm / 5.9"
Working Tube Length 1430mm / 56"
Transport Tube Length 1120mm / 44"
Glass Weight 2.5 lbs
Airspace Gap 1.5mm
OTA Weight (Estimate) 17 lbs / 7.7kg


Focuser Information



Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

Manuals & Diagrams

Product Sketches Available for Download:

Click here to download APO140FL F9.6 COG

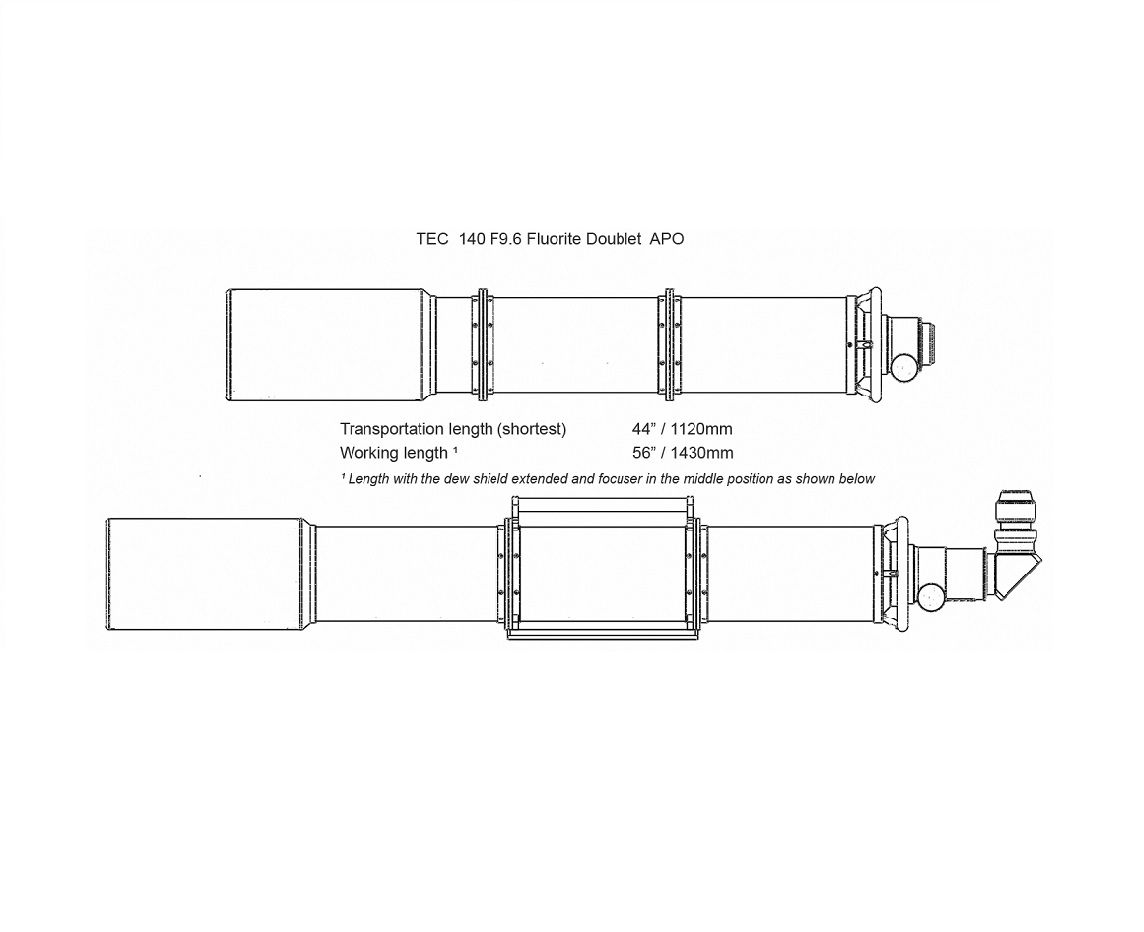

Click here to download APO140FL F9.6 Dimensions

Availability

May 1st, 2025: We currently estimate new APO140FL F/9.6 orders to be delivered in Winter 2025.

Mount Recommendations

  • Track the Stars Panther 160 Mount
  • 10Micron GM1000 HPS
  • 10Micron AZ1000 HPS
  • Astro-Physics Mach2GTO


Recommended Accessories

  • 14" Losmandy Universal Dovetail Plate and Carrying Handle with F/11 Holder Brackets
  • 12" TEC Dovetail Plate
  • Optional 140FL Tube Rings
  • 10×60 Baader Vario Finderscope with TEC Finder Bracket and Base
  • 7×50 Vixen Finderscope with TEC Finder Bracket and Base
  • 100mm Extender for eyepiece connection
  • Gutekunst Compact Atmospheric Dispersion Corrector (ADC) with ADC Adapter Set
