Telescopes

APO200FL F/11

The newly released update to the classic APO200FL will feature key design changes to optimize color correction and will be known as a “super” planetary telescope.

$29,00000


Description
Technical Details
Availability
Additional Options

Description

Our dedicated Planetary Refractor, the APO200FL F/11 will open the night sky to those willing to observe.

  • The APO200FL F/11 features an air-spaced apochromatic-doublet objective with a Fluorite (CaF2) inner element that comes to temperature more quickly than the previous APO200FL F/8 version.
  • The objective is housed in an aluminum cell, offering excellent thermoregulation while remaining lightweight and strong.
  • The optical assembly sits in a lightweight aluminum tube with anti-reflective coating and sharp-edged baffles throughout the interior.
  • No collimation is needed after the scope leaves TEC.
  • The crisp all-white assembly reflects the elegant, handcrafted quality TEC is known for.
  • Expect deep contrast and rich, natural color from this compact and timeless design.
  • Each APO200FL F/11 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser, designed in collaboration with TEC.
  • This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
  • The 2" locking metal collet is temperature-insensitive and holds loads with high precision and concentricity.
  • The APO200FL F/11 can be mounted with a 19" Losmandy Plate and Handle that attach to brackets connected to the telescope flanges.
  • Larger Losmandy Plates are recommended for a longer balancing range.
  • TEC will purchase and install the required plate for shipping.

In classic refractor fashion, the TEC APO200FL F/11 is a no-compromise, no-frills design that lets the wonders of nature speak for themselves.

Price: $29,000 (including an initial $8,000 refundable deposit).

Note: ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE. The price initially quoted for a telescope purchase may not be reflected in the final invoice. Wait times may also be longer than initially quoted.

How to place an order with TEC

To place an order, please complete the checkout process directly on our site. After your order is submitted, you will receive a confirmation email with next steps for TEC to take your deposit and begin processing. Your order is added to the production list once the deposit is received, but pricing is not guaranteed. The balance is due upon completion. Accessories and mounts can be requested in the order comments. Prices, availability, and lead times may change without notice. Paypal fees apply. Contact us with any questions or cancellations.

Specifications

Clear Aperture 200 mm
Focal Length 2200 mm
Focal Ratio 11
Back Focus Distance 260 mm / 10.2"
Rear wheel (handle) OD 270 mm
Tube Diameter 210 mm

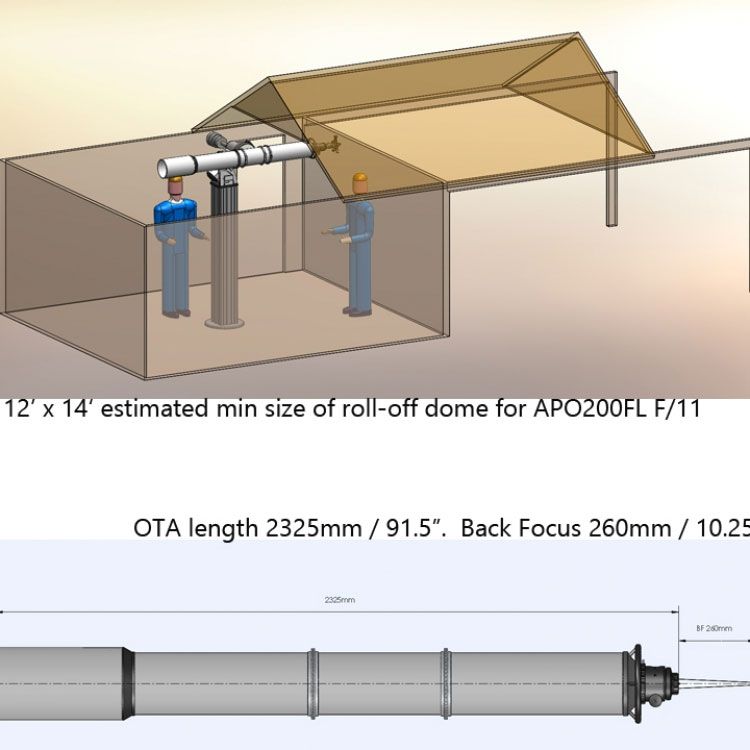

Tube Length 2325 mm / 91.5"
Glass Weight 8.8 lbs / 4 kg
OTA Weight (Estimate) 46 lbs / 21 kg
Shipping Crate Wooden 55" x 28" x 12"


Focuser Information



Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. If the objective does not meet Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferometrical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.



Focuser Instructions Available for Download

Click here to download Focuser Instructions

Availability

May 1st, 2025: We currently expect new APO200FL F/11 orders to ship around Spring or Summer 2026.

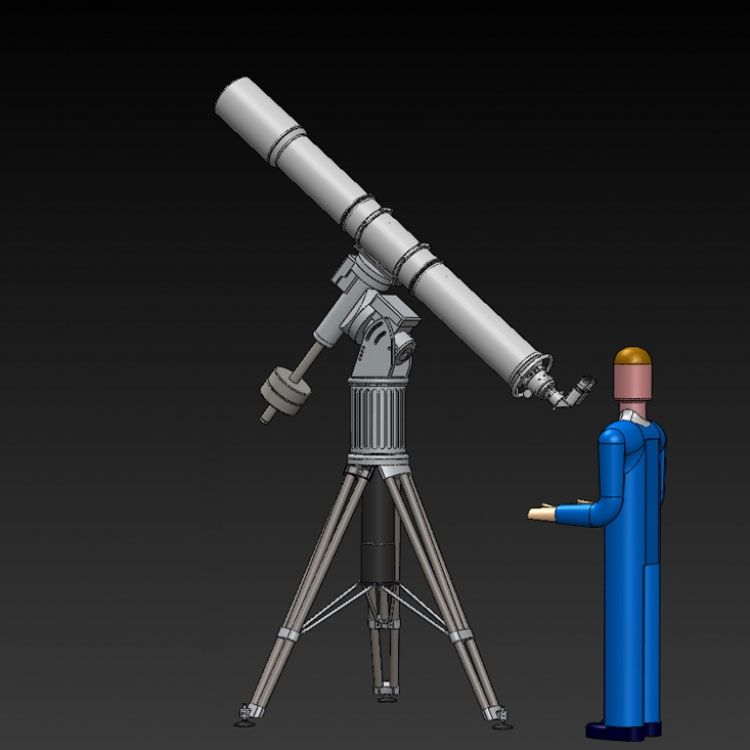

Mount Recommendations

  • 10Micron AZ3000 HPS

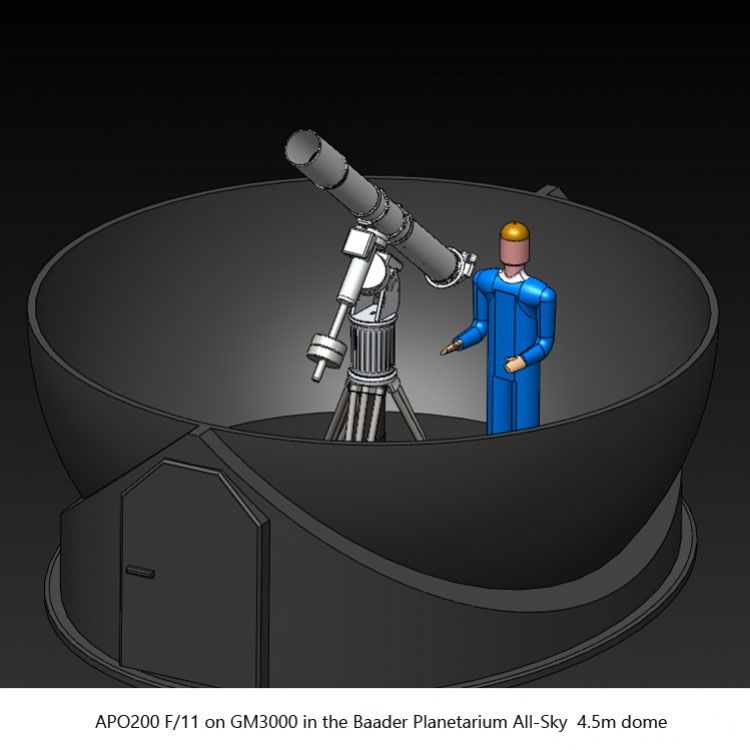

  • 10Micron GM3000 HPS
  • Astro-Physics 1600GTO Mount

Recommended Accessories

  • 19" Losmandy D Series Dovetail Plate and Carrying Handle with attachment brackets
  • 10×60 Baader Vario Finderscope with TEC Finder Bracket and Base
  • 7×50 Vixen Finderscope with TEC Finder Bracket and Base
  • 100mm Extender for eyepiece connection

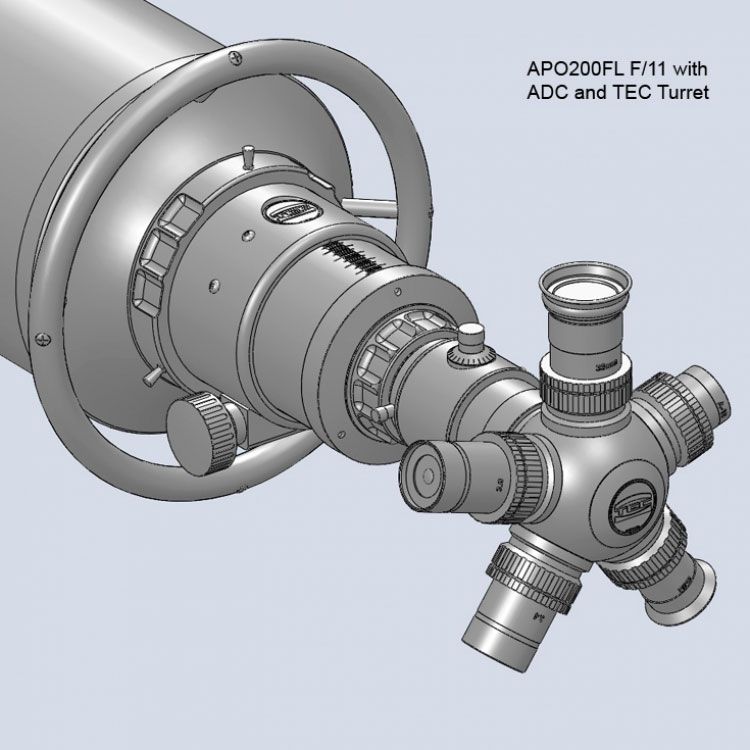

  • TEC Eyepiece Turret for quick exchange of eyepieces

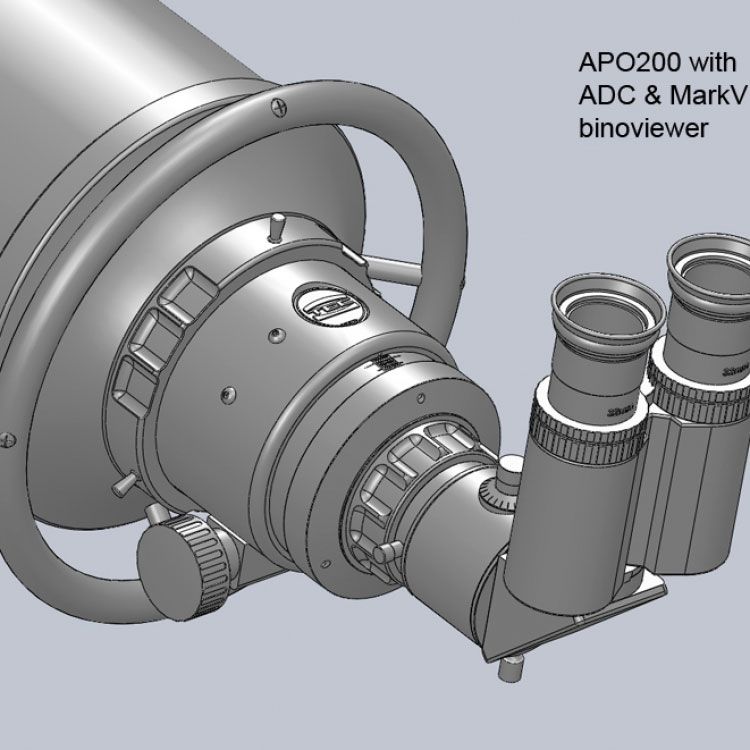

  • Gutekunst Compact Atmospheric Dispersion Corrector (ADC) with adapter set
